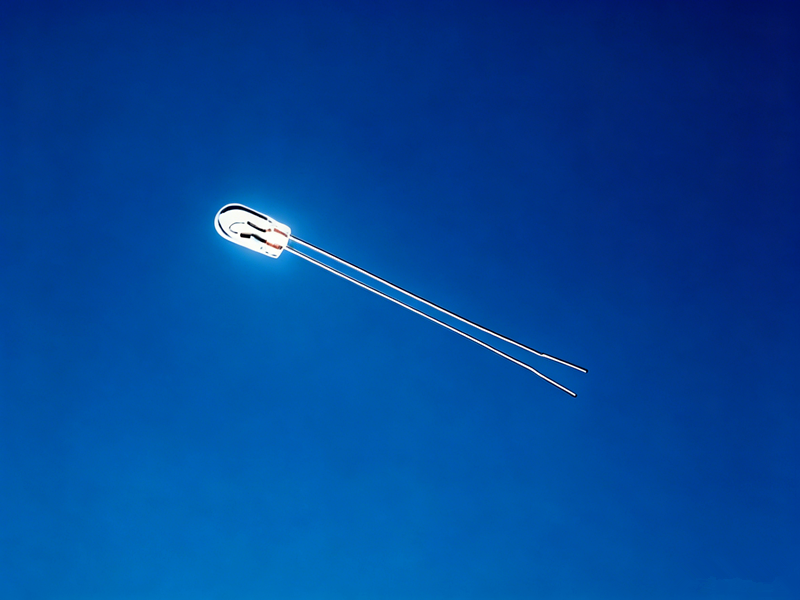

Infrared light source
The Infrared light source is matched to use with Pyroelectric Gas Sensors
Parameter | Data | Unit |
Voltage | 5.0 | V |
Current | 115±10% | mA |
Brightness | 0.15±25% | —— |
Lifetime | 40000 | H |
Shape of tungsten filaments | C-2R |
The Infrared light source is matched to use with Pyroelectric Gas Sensors
Parameter | Data | Unit |
Voltage | 5.0 | V |
Current | 115±10% | mA |
Brightness | 0.15±25% | —— |
Lifetime | 40000 | H |
Shape of tungsten filaments | C-2R |
